Metallographic Precision Cutting

Wafering Saws	PICO 155S / PICO 155P	PICO 200
Blade size	3-6 inch (75-150 mm)	8-inch (200 mm)
Cutting Capacity (max.)	2-inch (50 mm)	1.5-inches (38 mm)
Coolant	Gravity / Pump	Gravity
Variable Speed (rpm)	50-1500 rpm	300-3000 rpm
Fixtures	PICO 155 fixtures	PICO 200 fixtures
Part No.	PICO 155P	PICO 200

PICO 155P Low to Medium Speed Precision Cutter with coolant pump

For more details, click here

Feature PICO 155P Description Cutting capacity Max diameter 2-inch (50 mm) Coolant Dual nozzle with pump Cut-off blade size 3-inch (75 mm) - 7-inch (175 mm) Arbor size 0.5-inch (12.7 mm) Variable Speed (rpm) 50-1500 rpm continuously adjustable with LED speed display Cutting Load 0-1500 gram load Micrometer feed distance 0 to 1-inch (0-25 mm) Micrometer accuracy 2 microns Motor power 125W (24V) Electrical Specification 110V/220V (50/60 Hz) (single phase) Dimensions (W x D x H) Hood closed:19 x 23 x 14.5-inch (480 x 580 x 368 mm Hood open: 19 x 29 x 19-inch (480 x 740 x 370 mm) Weight 66 lbs (30 kg) PICO 155P fixtures PICO 155P fixtures

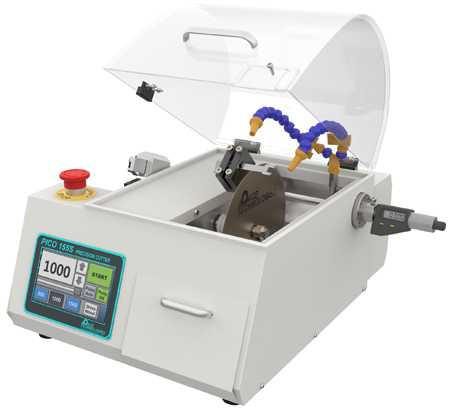

PICO 155S Low to Medium Speed Precision Cutter with coolant pump and digital control

For more details, click here

Feature PICO 155S Description Control 5-inch touchscreeen with Digital LED display and control Cutting capacity Max diameter 2-inch (50 mm) Coolant Dual nozzle with pump Cut-off blade size 3-inch (75 mm) - 7-inch (175 mm) Arbor size 0.5-inch (12.7 mm) Variable Speed (rpm) 50-1500 rpm continuously adjustable with LED speed display Cutting Load 0-1500 gram load Micrometer feed distance 0 to 1-inch (0-25 mm) Micrometer accuracy 2 microns Motor power 125W (24V) Electrical Specification 110V/220V (50/60 Hz) (single phase) Dimensions (W x D x H) Hood closed:19 x 23 x 14.5-inch (480 x 580 x 368 mm Hood open: 19 x 29 x 19-inch (480 x 740 x 370 mm) Weight 66 lbs (30 kg) PICO 155S fixtures PICO 155S fixtures

PICO 155 fixtures

Description	Part Number	PICO 155/155P	Image
Universal specimen vise	P150-702	x
Large single saddle vise with lip	P150-702b	x
Sample holder with double parallel vise for long specimens	P150-703	x
Sample holder for round and mounted specimens (1.25-inch)	P150-707	x
Teardrop holder (18-40 mm)(0.7-1.6-inch)	P150-710	x
Specimen vise for irregular shaped specimens	P150-706	x
Specimen vise for adhering specimens	P150-709	x
Swivel arm unit for angular cutting	P150-705	x
Fastener vise for longitudinal sectioning for fasteners, tubes etc.	P150-711	x
50 mm diameter flanges	P150-306	x
75 mm diameter flanges	P150-712	x
Cutting table attachment for manual cutting of printed circuit board specimens	P150-601	x
Wafering blade dressing fixture, PICO 155 saws	P150-701	x

The PICO 200 Variable Speed Table Saw

For more details, click here

Feature PICO 200 Description Cutting capacity 1.5-inches (38 mm) Specimen feed Table feed Coolant tank 3 Liters Cut-off blade size 8-inch (200 mm) Arbor size 0.5-inch Variable Speed (rpm) 300-3000 rpm continuously adjustable with LED speed display Motor power 1.0 hp (750 W) Electrical Specification 110V/220V (50/60 Hz) (single phase) Dimensions (W x D x H) 18 x 20 x 13.8-inch (460 x 500 x 350 mm) Weight 93 lbs (42 kg) PICO 200 fixtures PICO 200 fixtures

PICO 200 Fixtures and Accessories
